Industrial Rugged Gateways

Presenting our innovative Industrial Rugged Gateways, designed to deliver superior performance and reliability across diverse industrial applications. With over 12 years of experience in manufacturing, distribution, and supply, we proudly offer an unmatched selection of TRB142, TRB145, TRB140, TRB247, and TRB500 Gateways, each crafted to meet the most demanding connectivity requirements. These gateways feature unparalleled durability, high-speed connectivity, seamless integration, advanced security protocols, and exceptional scalability, making them ideal for industries requiring rugged and reliable solutions. Whether you opt for the TRB142''s compact design or the TRB500''s robust capabilities, our products guarantee superior operational efficiency tailored to your needs. Limited stock is available, so take advantage of our special offers to secure these unmatchable gateways for enhanced industrial performance. As a trusted supplier, trader, and service provider, we ensure all-India supply ability to meet domestic demand, delivering the best-in-class solutions for your business. Experience the unparalleled reliability and advanced features of our Industrial Rugged Gateways to propel your operations to new heights of productivity and connectivity.

TRB140 Gateways

MOQ : 10 Units

  • Antenna
  • 2 x SMA connectors (Cellular and GNSS/WiFi) included
  • Cable Length
  • Depends on connected accessories
  • Connectivity Type
  • Other , 4G LTE, 3G, 2G, Ethernet
  • Device Type
  • Cellular Gateway
  • Dimension (L*W*H)
  • 74.5 x 25 x 64.4 mm
  • Features
  • Compact design, rugged metal casing, wide voltage range, VPN, Firewall, SMS control
  • Frequency
  • LTE-FDD: B1/B3/B5/B7/B8/B20, LTE-TDD: B38/B40/B41, 3G: B1/B5/B8, 2G: B3/B8
  • IP Routing
  • Supported, Advanced Routing Features
  • Interface Type
  • Ethernet, SIM, Power, Antenna (SMA)
  • Network Device
  • Other, Industrial LTE Cat 4 Gateway
  • Number Of Ports/Pins
  • 1 Ethernet Port, 1 SIM Slot, 1 Power Connector, 1 Reset Pin
  • Operating Temperature
  • -40C to +75C
  • Port
  • 1 x 10/100 Ethernet
  • Power Consumption
  • <2 W (idle), <5 W (max)
  • Power Supply
  • Other, 9-30 VDC
  • Remote Control
  • Yes
  • Usage & Applications
  • Industrial automation, remote monitoring, M2M, IoT, transportation
  • Weight
  • 120 g

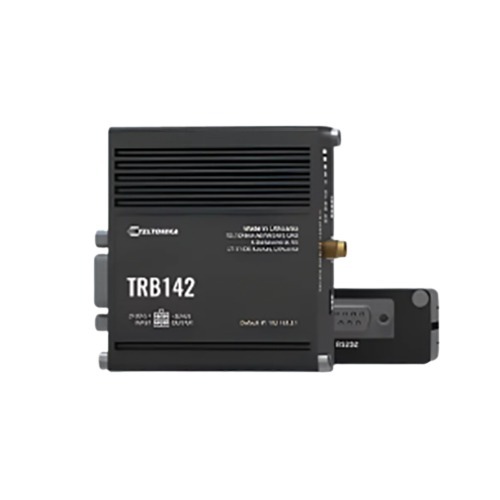

TRB142 Gateways

MOQ : 10 Units

  • Antenna
  • 1 x SMA (female) for LTE, 1 x SMA (female) for GNSS (optional)
  • Cable Length
  • Depends on application, typically up to 3 meters with supplied serial cables
  • Connectivity Type
  • Other , 4G LTE, 3G, 2G, RS232, USB
  • Device Type
  • Cellular Gateway
  • Dimension (L*W*H)
  • 74.5 x 25 x 64.4 mm
  • Features
  • Compact size, reliable 4G LTE connectivity, wide temperature support, DIN rail mountable, Dual SIM failover, multiple VPN services
  • Frequency
  • LTE FDD (B1/B3/B5/B7/B8/B20), LTE TDD (B38/B40/B41), UMTS, GSM bands
  • IP Routing
  • Supported (Static & Dynamic Routing)
  • Interface Type
  • RS232, USB 2.0, SIM Card Slot
  • Network Device
  • Other, Industrial LTE Gateway
  • Number Of Ports/Pins
  • 1 RS232, 1 USB, 1 SIM slot, 2-pin power
  • Operating Temperature
  • -40 C to +75 C
  • Port
  • 1 x RS232, 1 x SIM slot, 1 x Mini USB 2.0
  • Power Consumption
  • <2 W (typical)
  • Power Supply
  • Other, 9-30 VDC (2-pin industrial DC power socket)
  • Remote Control
  • Yes
  • Usage & Applications
  • Industrial automation, energy, transportation, remote monitoring, M2M communication
  • Weight
  • 125 g

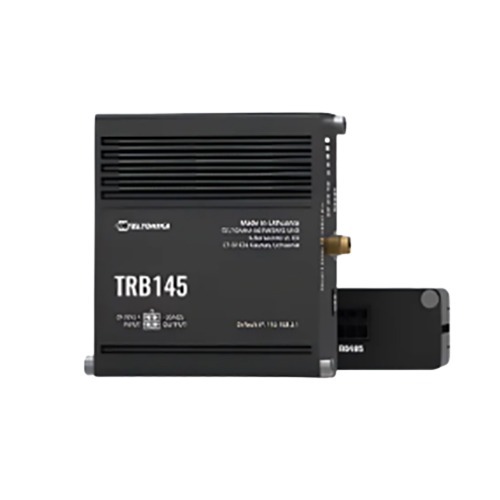

TRB145 Gateways

MOQ : 10 Units

  • Antenna
  • 2 x SMA connectors (one for LTE, one for GNSS optional)
  • Connectivity Type
  • Other , LTE (4G), 3G, 2G, Ethernet
  • Device Type
  • Industrial LTE Gateway
  • Dimension (L*W*H)
  • 74.5 x 49 x 25 mm
  • Features
  • Compact design, advanced security, VPN, firewall, SMS control, FOTA
  • Frequency
  • LTE: B1/B2/B3/B5/B7/B8/B20/B28, 3G: B1/B5/B8, 2G: B3/B8
  • IP Routing
  • Supported (static & dynamic)
  • Interface Type
  • RS232, mini SIM (2FF), 4-Pin DC Power
  • Network Device
  • Other, TRB145 LTE Gateway
  • Number Of Ports/Pins
  • 1 RS232 port, 1 SIM slot, 1 4-pin DC power
  • Operating Temperature
  • -40C to 75C
  • Port
  • 1 x RS232, 1 x SIM Slot, 1 x 4-Pin DC Power Socket
  • Power Consumption
  • Max 2 W
  • Power Supply
  • Other, 9 - 30 VDC (plug),
  • Remote Control
  • Yes
  • Usage & Applications
  • Industrial automation, remote monitoring, energy, transportation
  • Weight
  • 110 g

TRB247 Gateways

MOQ : 10 Units

  • Antenna
  • 2 x SMA for LTE, 1 x SMA for GNSS
  • Cable Length
  • Customisable/depends on installation
  • Connectivity Type
  • Other , 4G LTE Cat 4, 3G, 2G
  • Device Type
  • Gateway
  • Dimension (L*W*H)
  • 74.5 mm x 25 mm x 83 mm
  • Features
  • Rugged aluminium housing, wide voltage support, multiple VPN protocols, advanced networking and security features
  • Frequency
  • LTE FDD: B1/B3/B7/B8/B20/B28, LTE TDD: B38/B40/B41, 3G: B1/B8, 2G: B3/B8
  • IP Routing
  • Supported
  • Interface Type
  • Ethernet, RS232, Digital I/O
  • Network Device
  • Other, Industrial Cellular Gateway
  • Number Of Ports/Pins
  • 3 physical ports
  • Operating Temperature
  • -40C to +75C
  • Port
  • 1 x Ethernet, 1 x RS232, 1 x Digital Input/Output
  • Power Consumption
  • Max 2 W
  • Power Supply
  • Other, 9-30 VDC
  • Remote Control
  • Yes
  • Usage & Applications
  • Industrial automation, remote monitoring, M2M, IoT scenarios
  • Weight
  • Approximately 141 g

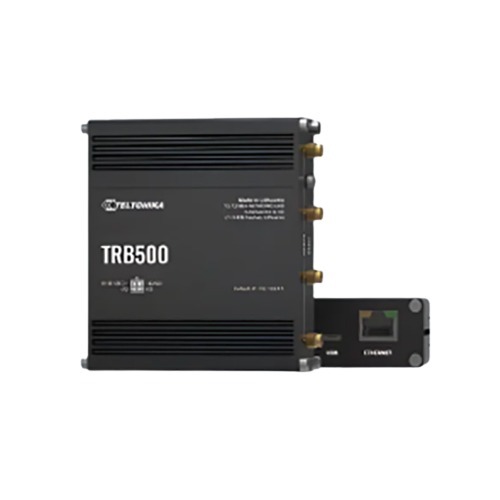

TRB500 Gateways

MOQ : 10 Units

  • Antenna
  • 2 x LTE antennas (SMA), 1 x GNSS (SMA)
  • Connectivity Type
  • Other , 4G LTE, Gigabit Ethernet
  • Device Type
  • Industrial Gateway
  • Dimension (L*W*H)
  • 74.5 mm x 25 mm x 83 mm
  • Features
  • Industrial-grade design, compact size, advanced security with VPN, SMS control, customizable via RutOS
  • Frequency
  • LTE: 700/800/900/1800/2100/2600 MHz
  • IP Routing
  • Supported
  • Interface Type
  • RJ45, SIM slot, Mini-USB
  • Network Device
  • Other, 4G LTE Cat 20 Cellular Gateway
  • Number Of Ports/Pins
  • 1 Ethernet port, 2 SIM slots
  • Operating Temperature
  • -40C to +75C
  • Port
  • 1 x Gigabit Ethernet
  • Power Consumption
  • Max 6.5 W
  • Power Supply
  • Other, 9-30V DC
  • Remote Control
  • Yes
  • Usage & Applications
  • Remote management, IoT applications, industrial automation
  • Weight
  • 150 g
