Human Machine Interface (HMI)

Step into the future with our Human Machine Interface (HMI), meticulously designed to transform the way humans interact with machines and elevate operational efficiency. As a trusted service provider, manufacturer, distributor, supplier, and trader with over 12 years of experience, we proudly offer an exclusive range of HMI solutions, including Software Human Machine Interface, CP600 Eco Human Machine Interface, CP600 Human Machine Interface, Accessories Human Machine Interface, and the ultimate CP600 C Human Machine Interface. These immaculate products stand out for their gorgeous display clarity, seamless software integration, exceptional user-friendly designs, robust durability, and remarkable adaptability across diverse industries. Get unparalleled advancements in industrial automation with these HMIs, which are engineered to deliver the ultimate precision and streamline processes with cutting-edge technology. With limited stock availability and supply ability reaching across All India, these innovations are celebrated for their exclusive features that make them the definitive choice for boosting productivity and enhancing user engagement. When it comes to top-tier applications such as machinery control, data visualization, and real-time monitoring, our HMIs are second to none in offering peak performance and reliability, making them an immaculate choice for businesses ready to embrace the future of automation and connectivity.

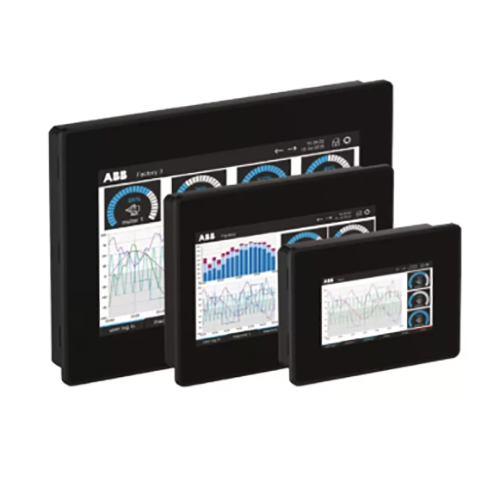

CP600 Eco Human Machine Interface

MOQ : 10 Units

  • Application
  • Industrial process control, Machine operation
  • Automation Grade
  • Automatic
  • Cable Length
  • Standard 2 meters
  • Connectivity Type
  • Ethernet, USB Host, RS232/RS485 Serial
  • Control Type
  • Touch Screen
  • Features
  • High brightness LED backlight, data logging, user-friendly configuration
  • Frequency
  • 50/60 Hz
  • IP Rating
  • IP66 (front), IP20 (rear)
  • Material
  • ABS Plastic, Polycarbonate front panel
  • Mounting Type
  • Panel Mount
  • Phase
  • Single Phase
  • Power
  • 24V DC (typical), max. 10W
  • Processor Type
  • ARM Cortex-A8, 600 MHz
  • Remote Control
  • Yes
  • Screen Size
  • 7 inch (16:9), 800 480 pixels
  • Sensor Type
  • Digital/Analog Input compatible
  • Temperature
  • Operating: 0C to +50C, Storage: -20C to +70C
  • Voltage
  • 24V DC
  • Weight
  • Approx. 1.1 kg

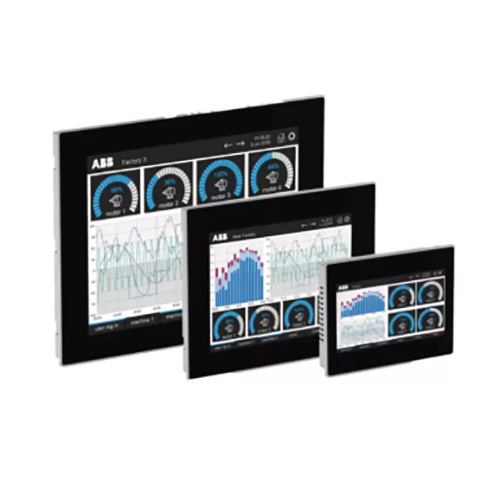

CP600 Human Machine Interface

MOQ : 10 Units

  • Application
  • Industrial Automation, Process Control
  • Automation Grade
  • Automatic
  • Cable Length
  • As per requirement
  • Connectivity Type
  • Ethernet, USB, RS232, RS485
  • Control Type
  • Touch Screen
  • Features
  • High-resolution TFT display, Multi-touch, Password protection, Multilingual support
  • Frequency
  • 50/60 Hz
  • IP Rating
  • IP66 Front
  • Material
  • Plastic, Aluminum Front, PC-ABS housing
  • Mounting Type
  • Panel Mounting
  • Phase
  • Single Phase
  • Power
  • 24 V DC (20%)
  • Processor Type
  • ARM RISC Processor
  • Remote Control
  • Yes
  • Screen Size
  • 7 inch, 10.4 inch, 12 inch (varies by model)
  • Temperature
  • Operating 0C to +50C, Storage -20C to +70C
  • Voltage
  • 24 V DC
  • Weight
  • Approx. 1.5-2.5 kg (depends on model)

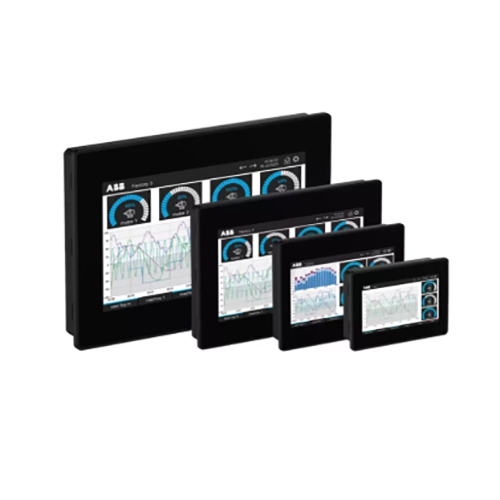

CP600 C Human Machine Interface

MOQ : 10 Units

  • Application
  • Industrial Automation, Process Control
  • Automation Grade
  • Automatic
  • Cable Length
  • Customizable
  • Connectivity Type
  • Ethernet, USB, Serial (RS232/RS485)
  • Control Type
  • Touch Control
  • Features
  • LED Backlight, TFT-LCD Display, Multi-Touch Support, Password Protection, User-friendly Interface
  • Frequency
  • 50/60 Hz
  • IP Rating
  • IP66 (front)
  • Material
  • ABS Plastic, Sheet Metal
  • Mounting Type
  • Panel Mount
  • Phase
  • Single Phase
  • Power
  • 24V DC, 8W
  • Processor Type
  • ARM Cortex-A8
  • Remote Control
  • Yes
  • Screen Size
  • 7 inch (800 x 480 pixels)
  • Temperature
  • Operating: 0C to +50C
  • Voltage
  • 24 V DC
  • Weight
  • Approx. 1 kg

CP600 Pro Human Machine Interface

MOQ : 10 Units

  • Application
  • Industrial Automation
  • Automation Grade
  • Automatic
  • Cable Length
  • Configurable
  • Connectivity Type
  • Ethernet, USB, Serial
  • Control Type
  • Touch Screen
  • Features
  • High-resolution display, multi-protocol support, robust construction
  • Frequency
  • 50/60 Hz
  • IP Rating
  • IP66 front/IP20 rear
  • Material
  • Polycarbonate Enclosure
  • Mounting Type
  • Panel Mount
  • Phase
  • Single Phase
  • Power
  • 24 V DC
  • Processor Type
  • ARM Cortex-A8
  • Remote Control
  • Yes
  • Screen Size
  • 10.1 Inch TFT LCD
  • Temperature
  • 0C to 50C
  • Voltage
  • 24 V DC
  • Weight
  • About 2.5 Kg

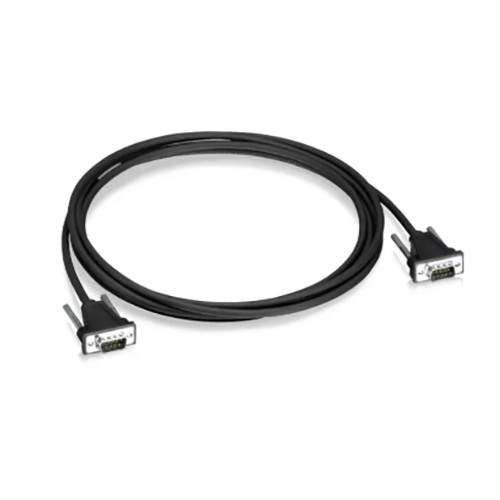

Accessories Human Machine Interface

MOQ : 10 Units

  • Application
  • Industrial Automation
  • Automation Grade
  • Automatic
  • Cable Length
  • 1.5 Meter
  • Connectivity Type
  • Ethernet, USB, RS232/RS485
  • Control Type
  • Touch Screen
  • Features
  • User Friendly Interface, Durable, High Resolution Display
  • Frequency
  • 50/60 Hz
  • IP Rating
  • IP65
  • Material
  • ABS Plastic
  • Mounting Type
  • Panel Mount
  • Phase
  • Single Phase
  • Power
  • 24V DC / 230V AC
  • Processor Type
  • ARM Cortex
  • Remote Control
  • Yes
  • Screen Size
  • 7 Inch TFT LCD
  • Temperature
  • 0 C to 50 C
  • Voltage
  • 24 VDC / 220-240 VAC
  • Weight
  • Approx. 900 g

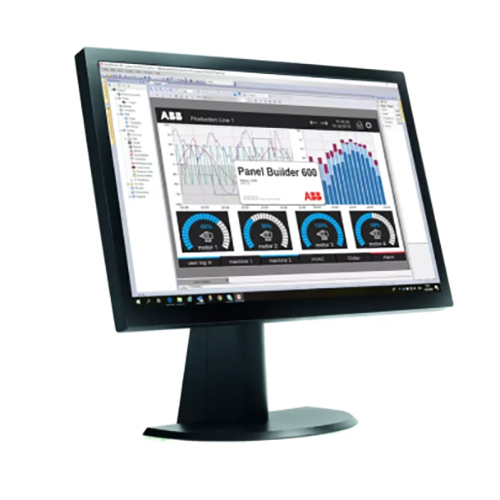

Software Human Machine Interface

MOQ : 10 Units

  • Application
  • Monitoring and Control Of Industrial Processes
  • Automation Grade
  • Automatic
  • Cable Length
  • Depends on Interface Hardware
  • Connectivity Type
  • Ethernet, USB, Serial
  • Control Type
  • Touchscreen/Soft Button
  • Features
  • Real-Time Monitoring, Data Logging, User-Friendly Interface
  • IP Rating
  • Depends on Hardware
  • Material
  • Software Platform, Digital Interface
  • Mounting Type
  • PC or Industrial Panel Mounted
  • Power
  • Not Required (Software-Based)
  • Processor Type
  • PC-Based Compatible
  • Remote Control
  • Yes
  • Screen Size
  • Variable (Depends on Installing Device)
  • Sensor Type
  • Supports Various Digital Sensors
  • Speed Range
  • Software Dependent
  • Temperature
  • 0-55C Operating Range
  • Weight
  • Not Applicable (Software)
