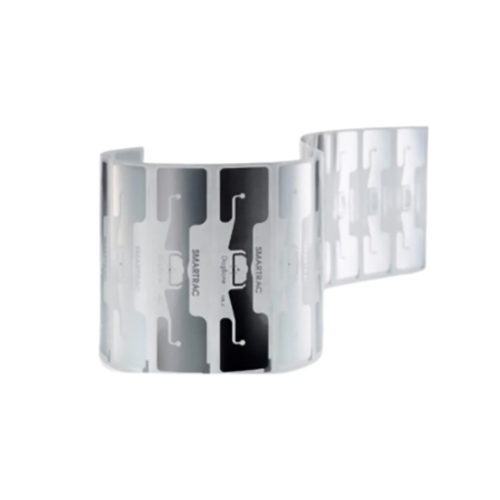

M750 AD Dogbone UHF Rfid Label

Get a Price/Quote

MOQ : 10 Units

M750 AD Dogbone UHF Rfid Label Specification

Function
Identification, Tracking, Inventory Management

Working Temperature
-40C to +85C

Power Supply
Passive (No external power required)

Print Technology
Thermal Transfer (Printable Face)

Capacity
EPC 96 to 496 bits, User Memory 32 to 128 bits

Features
Long Read Range, High Sensitivity, EPCglobal Gen2v2 Standard, Tamper Evident

Usage & Applications
Warehouse Management, Retail, Logistics, Asset Tracking, Supply Chain

Weight
Approx. 0.2 g per label

Humidity %
10% to 95% RH (Non-condensing)

Interface
UHF RFID (R6/R6P/M730/M750)

Condition
New

Material
PET, Aluminum, Adhesive

Dimensions
97 x 27 mm

Automatic Grade
Automatic

Use
UHF RFID Label for Inventory and Asset Tracking

Adhesive Type
Acrylic Permanent

Protocol
ISO/IEC 18000-63, EPC Class 1 Gen 2 V2

Mounting Surface
Suitable for non-metallic surfaces

Read Range
Up to 18 meters (dependent on environment and reader)

RoHS Compliant
Yes

Water Resistance
Yes

Write Endurance
Up to 100,000 cycles

Antenna Size
93 x 23 mm

Data Retention
Up to 50 years

Operating Frequency
860-960 MHz

Chip Type
Impinj M750

Storage Temperature
-55C to +125C

M750 AD Dogbone UHF Rfid Label Trade Information

Minimum Order Quantity
10 Units

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About M750 AD Dogbone UHF Rfid Label

Smart, high-performance tracking for logistics, automotive, and sports events.

Smart Tracking for Challenging Materials
Upgrade your supply chain and logistics management with the high-performance AD Dogbone^(R) M750 RFID label. Designed for superior tracking even on difficult-to-tag materials, Dogbone M750 delivers fast, accurate inventory control, improved bulk reading, and enhanced data security for global operations.

Key Features

Global Performance: Works well even on difficult-to-tag materials.
High Sensitivity: Enhanced read/write performance for faster bulk reading.
Smart Chip: Impinj M750 with 96-bit EPC and 32-bit User memory.
Privacy Mode: Protects consumer data, supports loss prevention.
Adaptive Tuning: Improved RF performance with autotune feature.

Specifications

Chip: Impinj M750
Frequency: 860960 MHz
Memory: 96-bit EPC / 32-bit User
Standard: ISO 18000-63 / EPC Gen2v2
Size: 94 x 24 mm (Antenna) | 97 x 27 mm (Die-cut)
Formats: Dry Inlay / Wet Inlay / Paper Label

Mechanical & Environmental

Material: PET substrate, silicon liner
Operating Temp: -45C to +85C
Reel Quantity: 10,000 pcs (inlay) / 3,000 pcs (label)
Compliance: RoHS & REACH Certified

Experience stellar performance and cost-effective inventory management with the sought-after M750 AD Dogbone UHF RFID Label. This classic label operates on ISO/IEC 18000-63 and EPC Gen 2 V2 protocols, boasting a remarkable read range of up to 18 meters, saving time and resources. Built with an Impinj M750 chip, it ensures high data retention (up to 50 years) and write endurance. The RFID label's acrylic permanent adhesive and PET construction make it ideal for non-metallic surfaces. Try now to maximize efficiency and enjoy unmatched savings in asset tracking.

Exceptional Features and Application Flexibility

The M750 AD Dogbone UHF RFID Label stands out with its tamper-evident design, water resistance, and robust print technology via thermal transfer. Compatible with non-metallic application surfaces, its acrylic permanent adhesive guarantees secure attachment, while the PET material enhances durability. This versatile label excels across varied media, making it perfect for warehouse management, retail shelves, logistics, supply chains, and comprehensive asset tracking. Its flexibility ensures accurate identification and tracking in dynamic operational environments.

Premium Packaging and Efficient Supply

Every M750 AD Dogbone UHF RFID Label order is handled with care, ensuring optimal protection and presentation. Valuation is transparent and competitive, while our premium supply ability guarantees consistent stock levels to meet your demands. Expect swift delivery times on all orders, optimizing your asset tracking rollouts. From order completion to after-sales support, our process ensures a seamless experience for distributors, manufacturers, service providers, suppliers, and traders throughout India.

FAQ's of M750 AD Dogbone UHF Rfid Label:

Q: How does the M750 AD Dogbone UHF RFID Label ensure accurate identification and tracking?

A: The M750 AD Dogbone UHF RFID Label utilizes Impinj M750 technology, supporting ISO/IEC 18000-63 and EPC Gen 2 V2 protocols, which combine with a long read range and high sensitivity for precise inventory and asset tracking.

Q: What types of surfaces are compatible with this RFID label?

A: This label is specially designed for non-metallic surfaces; its acrylic permanent adhesive ensures secure application on plastic, glass, paper, and other non-metallic materials.

Q: Where can I use the M750 AD Dogbone UHF RFID Label?

A: You can use this classic RFID label across multiple areas including warehouse management, retail, logistics, asset tracking, and supply chain operations, enhancing operational efficiency and visibility.

Q: What is the data retention capability of the M750 AD Dogbone UHF RFID Label?

A: The label offers outstanding data retention for up to 50 years, making it exceptionally reliable for long-term asset identification and tracking applications.

Q: How quickly can I expect delivery after order completion?

A: Once your order is completed and valued, we ensure premium packaging and swift delivery, fulfilling requirements efficiently throughout India based on supply ability and demand.

Q: What benefits do I gain from using this RFID label for my business?

A: By adopting the M750 AD Dogbone UHF RFID Label, you gain cost-effective savings, reliable long-range tracking, tamper evidence, and seamless integration into existing RFID systems, streamlining inventory and asset management processes.
